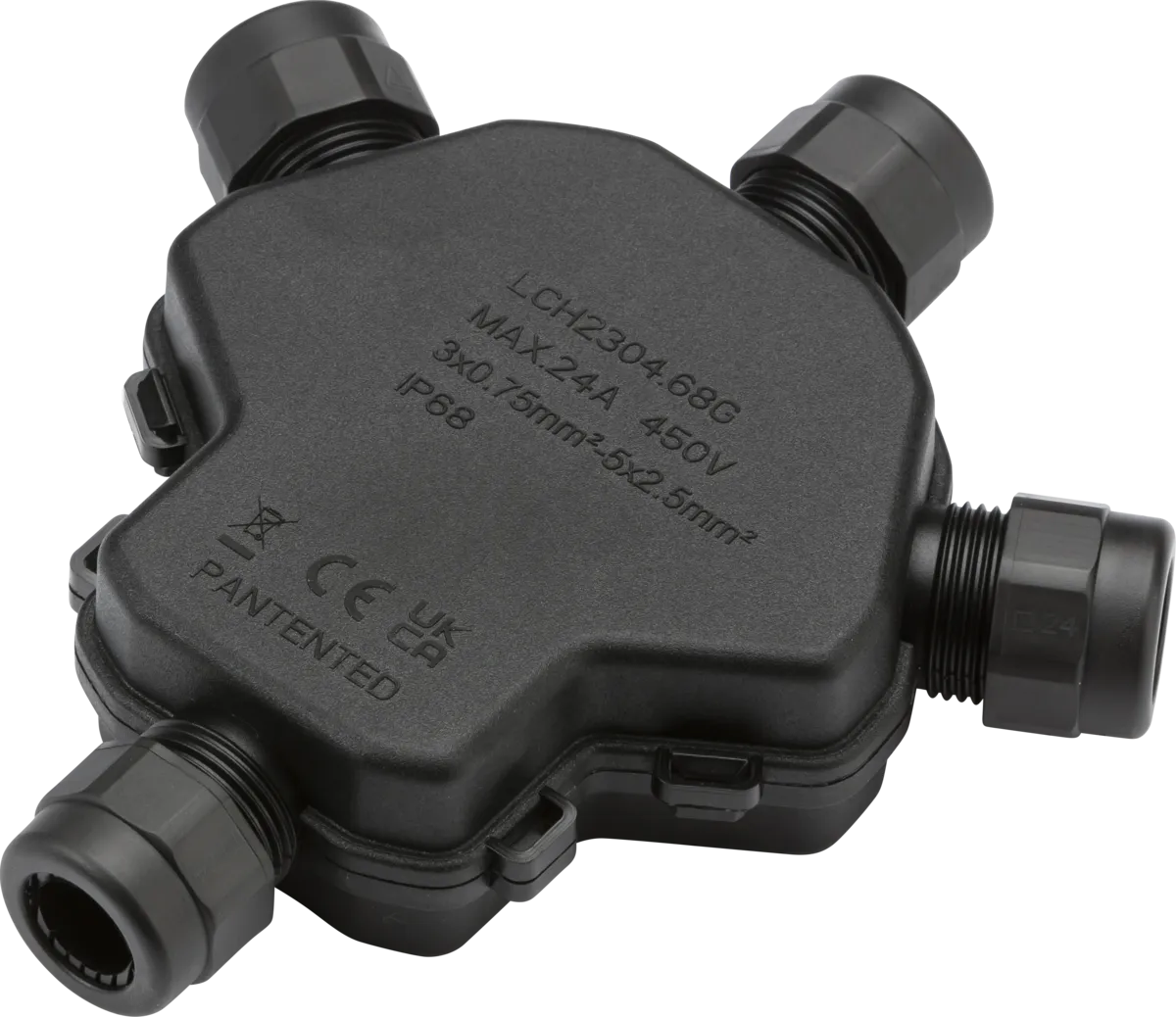

Knightsbridge JB0015 IP68 4-Way Weatherproof Gel Junction Box
Supplier prefilled with gel and includes set of sleeves and a 1 to 3 lever connector.
- IP68 rated (@5bar)
- Max. 24A 250V/450V PTI 250, T85
- Manufactured from PA66, V-0, 960°C, PTI:250 with silicon sealing gasket.
- Supplied with a set of cable sleeves and a lever connector
- Min: 5mm cable diameter
- Max: 14mm cable diameter
- M22 size cable glands
- For use with H07RNF 3G 0.75mm2 - 2.5mm2 cable
- Operating Temperature: -30° C ~ 85° C
- Storage Temperature: -30° C ~ 85° C
- Barometric pressure: 86~106Kpa
Data Sheet:
